Commercial griddles (flat-top grills) power the W4 hot line with wide, evenly heated surfaces for burgers,
eggs, bacon and all-day breakfast menus.
KW supplies gas and electric commercial griddles in benchtop, stand-mounted, oven-base and combination formats to match
your menu, cookline space and power availability.
Engineering Guide: Commercial Griddles in the W4 Hot Zone
A commercial griddle is a high-load appliance operating in the W4 cookline — the hottest, busiest and most injury-prone zone in the kitchen. Griddles regularly run at 160–240 °C, producing dense thermal plumes, high grease load and constant chef movement. Engineering, plate thickness and heating design determine whether the cookline stays fast, safe and consistent during peak periods.
W-Zone Workflow & Placement
- W4 – Hot Line (primary): All gas and electric flat-top griddles, smash stations and heavy plate cookers.
- W3 – Prep (secondary): Small electric griddles for light breakfast or snack cooking.
- W5 – Pass: Low-heat finishing or holding zones on multi-zone plates.
Plate Thickness, Thermal Mass & Warping Resistance
Plate thickness alone does not define performance — thermal mass and heat distribution are critical for crisp browning and smash-burger sear quality. Thin plates lose heat quickly and are prone to warping under thermal stress.
- 10–12 mm: Fast heat-up, suitable for light cafés.
- 16–20 mm: High thermal mass for burgers, steaks and heavy turnover.
- Mild steel: Strong heat retention and natural seasoning.
- Chrome plate: Lower sticking, reduced smoke, but requires gentle cleaning and is sensitive to thermal shock.
- Stainless steel: Corrosion-proof but lower thermal mass; best for light-duty or all-day breakfast menus.
- Warping risk: Large temperature swings or pouring cold water on a hot plate can permanently distort the surface.
Heating Systems: Gas vs Electric (MJ/h & kW)
- Gas griddles: 30–100 MJ/h per zone. Strong heat-up and fast recovery. Burner layout (U-shape, serpentine or straight rows) influences hot-spot mapping.
- Electric griddles: 3–7 kW per zone. Very even heat; available in single-phase, 20A–32A or three-phase options.
- Tubular electric elements: High durability and consistent heat transfer.
- Ribbon elements: Fast response but more suited to light–medium duty and may carbonise more quickly.
Zone Control & Workflow Efficiency
Many commercial griddles feature multi-zone temperature control, enabling chefs to run distinct areas:
- High-heat sear zone: Smash burgers, steaks, browning and crusting.
- Medium zone: Bacon, onions, pancakes and everyday line cooking.
- Low zone: Holding, gentle finishing and preventing over-coloration during rush periods.
Ventilation Coupling (AS1668) & Smoke Generation
Griddles generate dense thermal plumes and heavy aerosolised grease. Correct pairing with the canopy is essential for smoke control.
- Capture velocity: Must exceed that of cooktops due to the griddle’s wide surface and constant grease evaporation.
- Plume type: Smash-burger stations generate strong outward plumes; chrome plates create lower smoke output.
- Ventilation height: Canopies placed too high allow smoke rollback into the workspace.
- Heat spill: Avoid placing griddles beside refrigeration — radiant heat disrupts fridge performance.
Grease Management & Trough Design
- Front trough systems: Faster scraper workflow, ideal for burger shops.
- Rear trough systems: Cleaner pass-through kitchens, reduced splash-risk.
- Blocked troughs: Lead to grease pooling, flare-ups and hard carbon buildup.
Safety, Burns & Line Risk Management
- Surface temperature: 160–240 °C — instant burn risk on contact.
- Splashguards: Reduce grease spray but must not block canopy capture.
- Chef flow: Crowded lines increase forearm and elbow burns.
- Thermal shock: Never pour cold water onto a hot plate — warping risk and steam explosion.
- Adjacent appliances: Fryers + griddles = double heat load; must be spaced to avoid canopy overload.
Cleaning & Maintenance
- During service: Scrape regularly; avoid over-watering the plate.
- End of day: Mild-steel plates can be cleaned with water and a brick; chrome plates require approved cleaners only.
- Grease drawer: Empty daily; built-up grease is a fire risk.
- Weekly service: Degrease channels, check burner ports or element housings and inspect for carbon deposits.
Common Fitout Mistakes (Expensive & Dangerous)
- Placing griddles beside fridges: Radiant heat causes refrigeration failure and temperature drift.
- Plate too thin: Poor browning, slow recovery and uneven cooking during peak periods.
- Oversized splashguards: Block canopy airflow and worsen smoke buildup.
- No landing zone: Nowhere safe to place cooked items leads to burns and workflow congestion.
- Underpowered utilities: Gas or power supply not sized to support multi-zone cooking.
Commercial Griddle Types

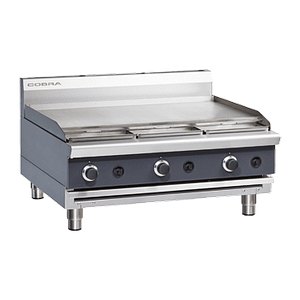

- Benchtop Griddles: Compact electric or gas units for food trucks, kiosks and small kitchens.

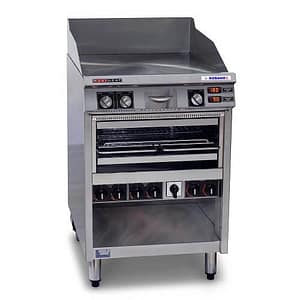

- Combination Griddles: Griddle plus open burners or chargrill for flexible menus.

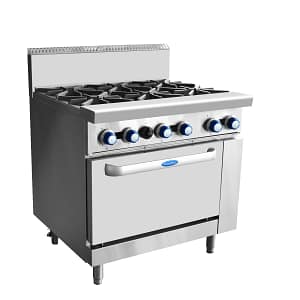

- Griddles with Ovens: Space-saving two-in-one cooking platforms.

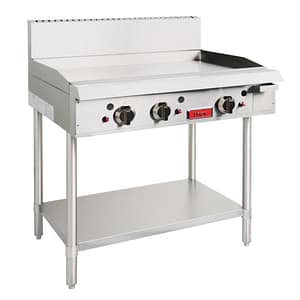

- Griddles with Stands: Line-matching units with storage and solid stability.
Browse Commercial Griddle Categories
FAQ – Commercial Griddles
Why does my griddle have hot and cold spots?
Uneven heating usually comes from burner or element layout. Thicker plates reduce hot-spot variation, while proper preheat helps achieve even temperature across the surface.
Why does food stick on the plate?
Incorrect temperature, insufficient seasoning (mild steel), residue buildup or scratching on chrome plates are the most common causes. Gentle cleaning and correct heat settings prevent sticking.
Do I need ventilation for an electric griddle?
Yes. Even without combustion gas, electric griddles produce grease vapour, smoke and steam. Most councils require compliant canopy extraction.
How long should I preheat my griddle?
Light plates reach temperature in 10–15 minutes; heavy 16–20 mm plates require 25–40 minutes. Proper preheat ensures consistent browning and fast recovery during service.
Need help choosing plate thickness or sizing a commercial griddle for your W4 cookline? Call 1300 001 366.
Specs validated by KW Commercial Kitchen.
