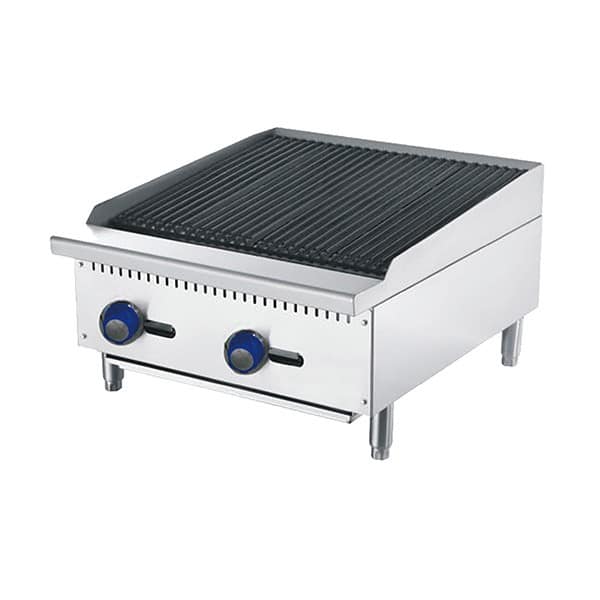

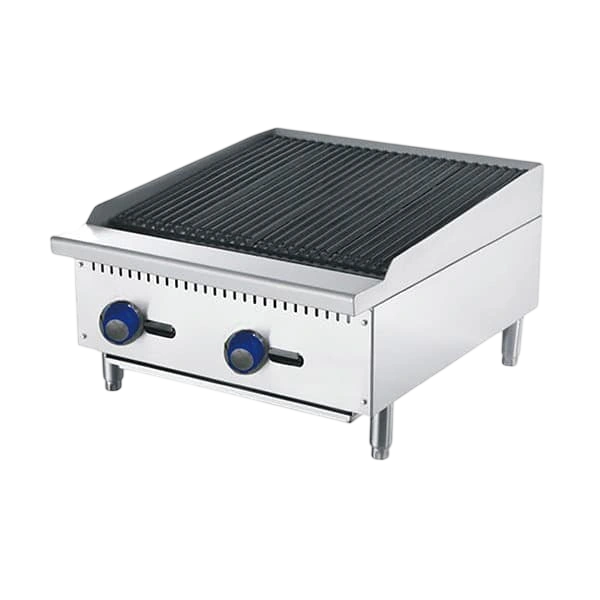

CookRite ATCB-24-LPG 610mm Lava Rock Charbroiler – Professional LPG Grill
Updated:
At KW Commercial Kitchen, the CookRite ATCB-24-LPG is a compact 610mm lava rock charbroiler delivering authentic, smoky chargrilled flavour. Featuring natural lava rocks that absorb and evenly radiate heat, this LPG grill reduces flare-ups while enhancing the texture and aroma of grilled foods. Built with 304 stainless steel and heavy-duty cast-iron grates, it’s engineered for reliability in professional kitchens, food trucks, and BBQ setups.
Built for Australian restaurants, cafés & BBQ kitchens
The ATCB-24-LPG offers a 33 MJ/h LPG burner with flame failure protection and Robert Shaw control valves for precision. Its integrated splashback and drip tray make daily use and maintenance simple, ensuring long-term durability and safety compliance.
Key features & specifications
- Fuel Type: LPG (Natural Gas version available separately)
- Burner Output: 33 MJ/h
- Cooking Surface: 610 mm wide with cast-iron grilling grates
- Heat Distribution: Natural lava rocks for even heat and smoky char flavour
- Safety: Flame failure protection and manual ignition
- Controls: American Robert Shaw valves for accurate flame adjustment
- Construction: 304 stainless steel body, stainless burners, and cast-iron grates
- Splashback: Integrated stainless guard for cleaner operation
- Maintenance: Removable drip tray and easy-access lava rock bed
- Dimensions (W×D×H): 610 × 700 × 385 mm
- Weight: 62.5 kg (77 kg packed)
- Gas Connection: ¾″ BSP rear inlet
- Warranty: 2 years parts & labour + 2 years parts (upon registration)
Compliance & safety (AU)
- Gas: Installed by a licensed gas fitter as per AS/NZS 5601.1 standards; LPG configuration factory-set.
- Electrical: Not required (manual ignition).
- Food safety: FSANZ-compliant stainless build for hygienic commercial operation.
Convenience & usage advice
- Daily cleaning: Scrape grates while warm; empty drip tray; wipe stainless exterior with neutral detergent.
- Maintenance: Replace lava rocks periodically; check flame pattern and gas fittings monthly.
Ideal applications
- Restaurants & cafés
- Steakhouses & BBQ kitchens
- Food trucks & catering events

At a glance
- 610 mm width, LPG configuration
- 33 MJ/h total output
- Lava rocks for even, smoky heat
- 2+2 year warranty (registration required)
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Brush the grates while warm; remove drip tray and wash with neutral detergent; avoid harsh chemicals or high-pressure sprays.
2) What routine maintenance keeps performance stable?
Clean lava rock bed and burners monthly; replace rocks every 6–12 months depending on use intensity.
3) What are the gas requirements and typical energy use?
Requires LPG with ¾″ BSP connection; 33 MJ/h gas input; consumption depends on cooking volume and duration.
4) What about installation and Australian compliance?
Install by licensed gas fitter per AS/NZS 5601.1; ensure ventilation and heat clearance; indoor commercial use only.
5) Are spare parts and accessories available?
Yes – replacement lava rocks, burners, and grates are available. Provide model and serial for correct match.
Specs source: CookRite ATCB-24-LPG technical documentation and supplier data.
