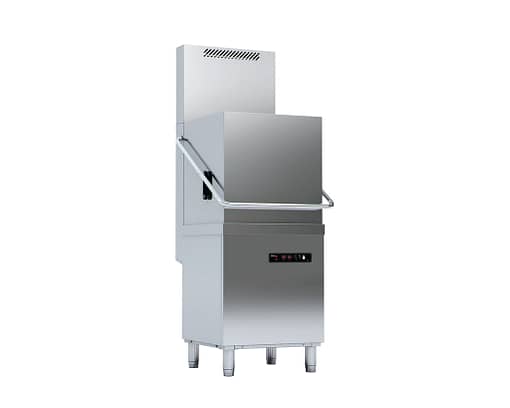

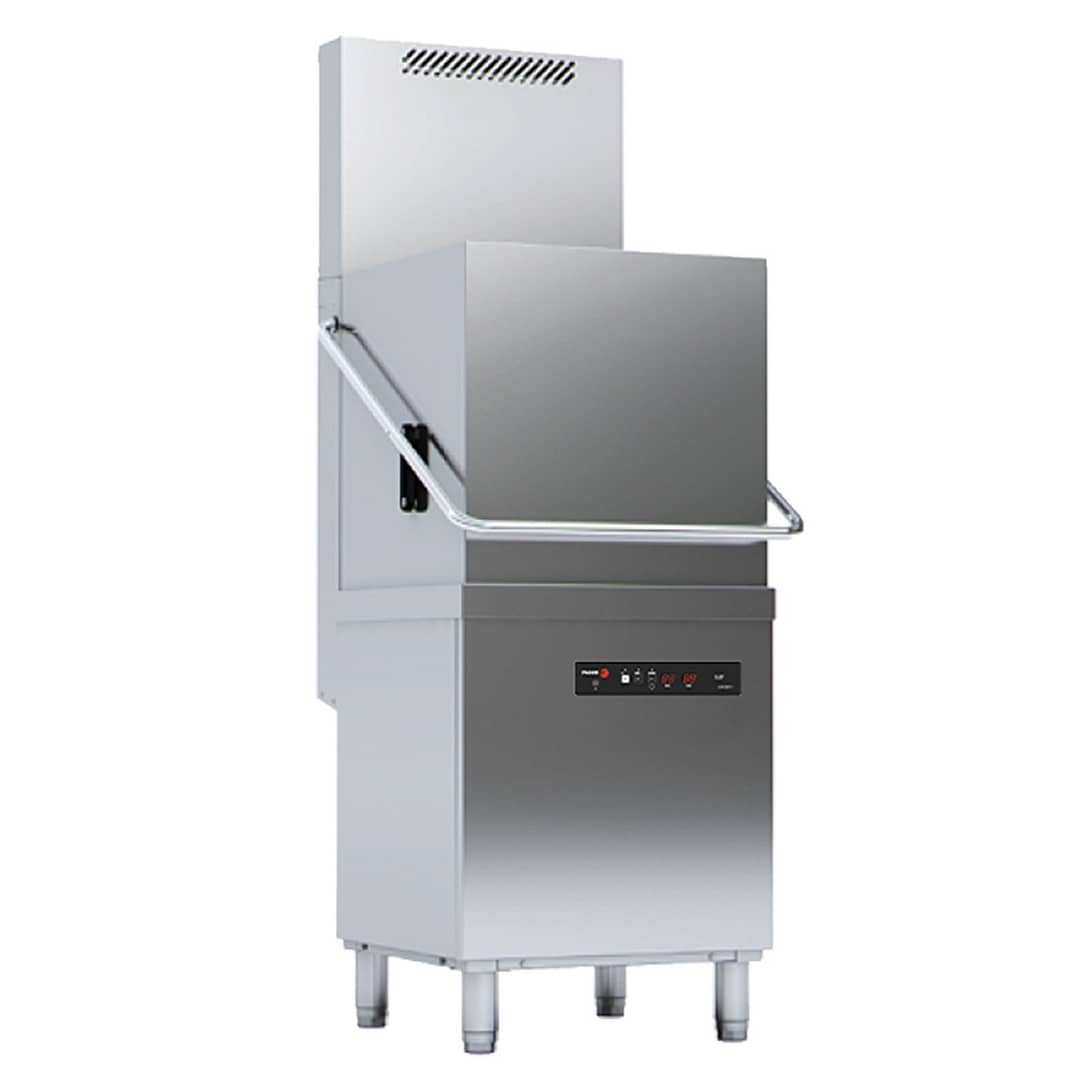

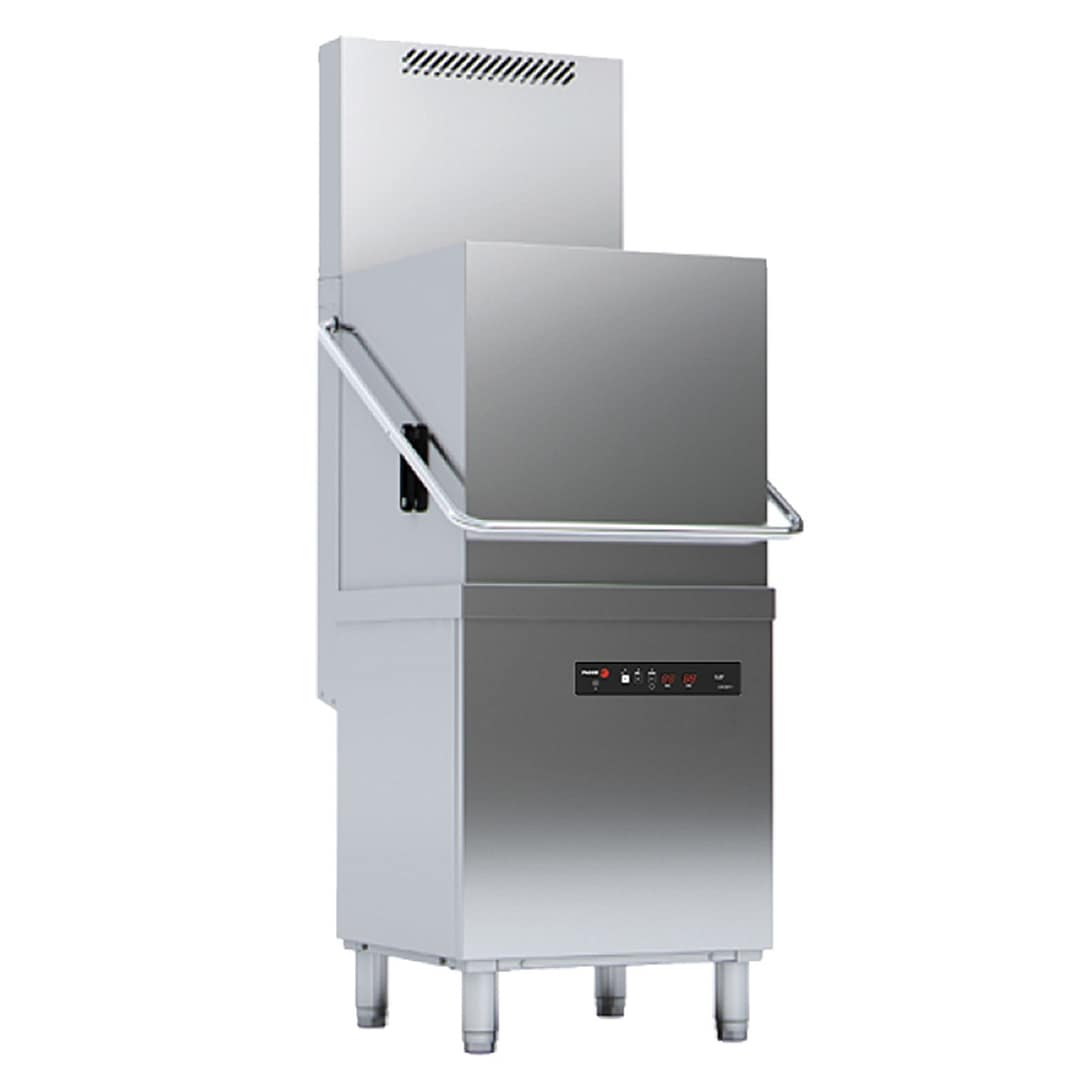

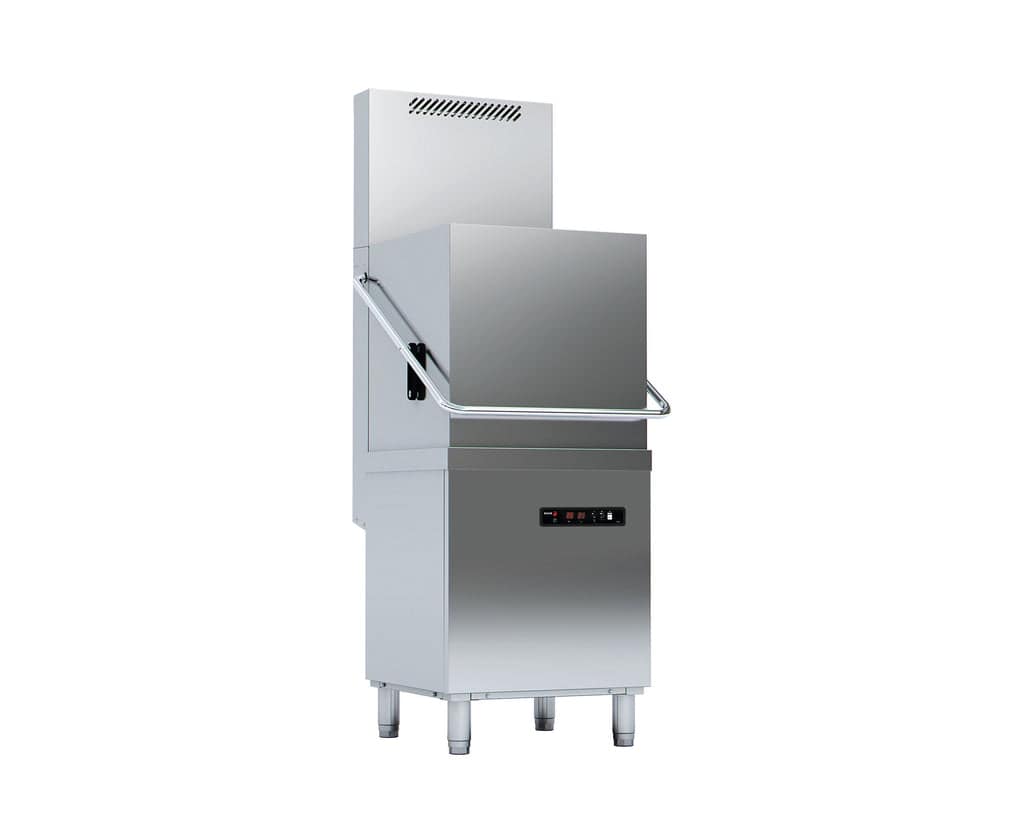

Fagor CO-142HRSBDD EVO-CONCEPT Pass-through Dishwasher – Heat Recovery System
Updated:
At KW Commercial Kitchen, the Fagor EVO-CONCEPT CO-142HRSBDD
is a European hood-type pass-through dishwasher featuring an integrated
heat recovery system, low 2.4L/cycle water use and up to
65 racks/hour capacity. Built from AISI-304 stainless steel and
designed and manufactured in Spain, it’s engineered for Australian restaurants,
hotels and institutional kitchens that need high throughput, lower running costs and a more
comfortable dishwash area.
Built for Australian restaurants, hotels and high-volume kitchens
The CO-142HRSBDD combines short 55–120 second cycles,
GN 1/1 tray compatibility (440mm entry) and double rotating wash/rinse arms,
delivering powerful washing and sanitising while keeping steam and noise under control.
Key features & specifications
- Wash cycles: 55 / 75 / 120 seconds
- Capacity: Up to 65 racks/hour (≈1170 plates/hour)
- Entry height: 440mm (suits GN 1/1 trays)
- Tank: 33L with 4.5kW heating element
- Booster boiler: 9L with 9kW element
- Water use: 2.4L per cycle (≈60L/h at standard duty)
- Power / Voltage: 11.1kW, 400V 3N, 50Hz
- Dimensions (W×D×H): 630 × 750 × 1920mm (≈2000mm with hood open)
- Weight: 126kg
- Construction: AISI-304 stainless steel, counterbalanced hood, double rotating arms
- Controls: Electronic panel, thermostatic wash (≈60°C) and rinse (≈90°C)
- Safety: Thermal stop (≈85°C rinse), hood safety switch, IPX4 rating
- Certifications: WaterMark certified
- Origin: Designed and manufactured in Spain
- Warranty: 2 years parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant; 400V 3-phase connection by licensed electrician.
- Plumbing: WaterMark certified; requires hot softened water and compliant drainage.
- Food safety: FSANZ-aligned sanitising through high-temperature final rinse.
Convenience & usage advice
- Comfortable dishwash area: Heat recovery reduces steam discharge into the room.
- Tray & utensil friendly: 440mm entry height suits GN 1/1 and bulkier kitchenware.
Ideal applications
- Restaurants, hotels & cafés
- Institutional and healthcare kitchens
- Catering and banquet operations

Smart energy & sustainability – water, power & heat recovery
Water consumption: efficient rinsing
With 2.4L per cycle, a typical service running
240 racks/day (e.g. 60 racks/hour × 4 peak hours) uses around:
- Daily water use: ≈ 576L (0.576kL)
A comparable machine using 3.0L per cycle would draw ≈720L/day for the
same workload—about 25% more water.
At an indicative combined water + wastewater cost of $4/kL, that’s
roughly:
- CO-142HRSBDD: ≈ $2.30/day
- Typical non-eco washer: ≈ $2.90/day
- Yearly saving: ≈ $220 in water + sewer charges
Electricity & heat recovery vs standard hood-type machines
The CO-142HRSBDD is rated at 11.1kW connected load. Heat recovery
captures energy from the outgoing steam to preheat incoming cold water, reducing the
boiler’s demand and the amount of steam discharged into the room.
Using a typical AU electricity rate of $0.32/kWh and a duty cycle of
4 hours/day of active washing:
- Efficient HRS model (approx. 9.8kW average draw):
9.8kW × 4h ≈ 39kWh/day → ≈ $12.50/day - Conventional pass-through (≈13kW no heat recovery):
13kW × 4h ≈ 52kWh/day → ≈ $16.70/day - Yearly saving: ≈ $1,530 in electricity
CO₂ footprint reduction
At an indicative grid factor of 0.82kg CO₂e/kWh:
- HRS model: 39kWh/day → ≈ 32kg CO₂e/day
- Standard machine: 52kWh/day → ≈ 43kg CO₂e/day
- Annual CO₂e reduction: ≈ 3,800kg CO₂e/year
Hood & ventilation advantages
- Less steam in the room: Heat recovery condenses much of the vapour, improving staff comfort.
- Lower HVAC load: Reduced hot, moist air can ease demand on air-conditioning systems.
- Can simplify canopy requirements: In some designs, the HRS system may lessen the need for a large dedicated hood
directly over the machine—always confirm with your mechanical engineer and local regulations.
Water Use: 2.4L/cycle (eco class)
Energy Saving: ≈25–30% vs conventional hood-type
CO₂ Reduction: ≈3.8t/year (typical duty)
Origin: Made in Spain
AU 2026 Energy & Water Ready
All estimates are indicative and exclude fixed supply charges. Actual results vary with hours of use, incoming water
temperature, rack loading and site utilities.
At a glance
- Up to 65 racks/hour and GN 1/1 tray compatible
- 2.4L water per cycle with heat recovery
- 11.1kW three-phase, made in Spain
- WaterMark & RCM compliant; 2-year parts & labour warranty
Frequently Asked Questions
1) How much water does it use per cycle?
Approx. 2.4L per cycle, which is very efficient for a hood-type pass-through
dishwasher and helps reduce both water and sewer costs.
2) Can it wash large trays and utensils?
Yes. The 440mm entry height accommodates GN 1/1 trays and many bulkier utensils
used in high-volume kitchens.
3) What installation requirements are needed?
Requires 400V 3-phase power, hot softened water (3/4” inlet) and a suitable drain
connection. Installation must be carried out by licensed trades.
4) How does the heat recovery system work?
Steam generated during operation is captured and used to preheat incoming water, reducing
boiler energy demand and limiting steam released into the dishwash area.
5) What warranty is included?
The CO-142HRSBDD includes a 2-year parts & labour warranty, supported by
Fagor’s Australian service network.
