Enhance Your Kitchen with the Fagor TS Conveyor Dishwasher Drying Tunnel

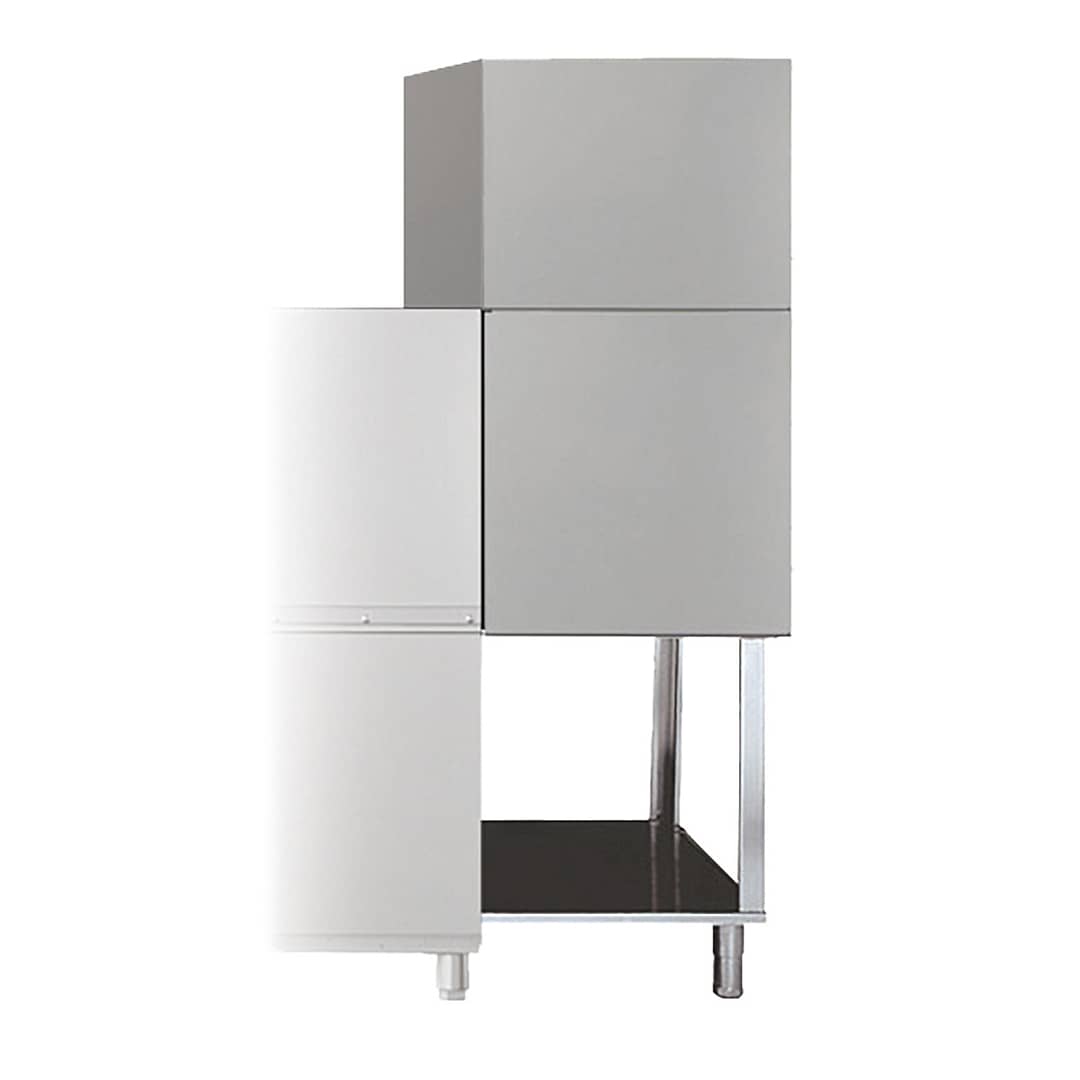

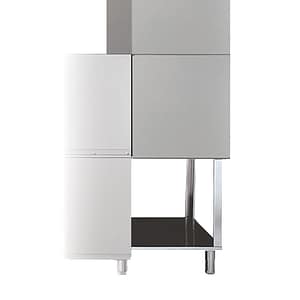

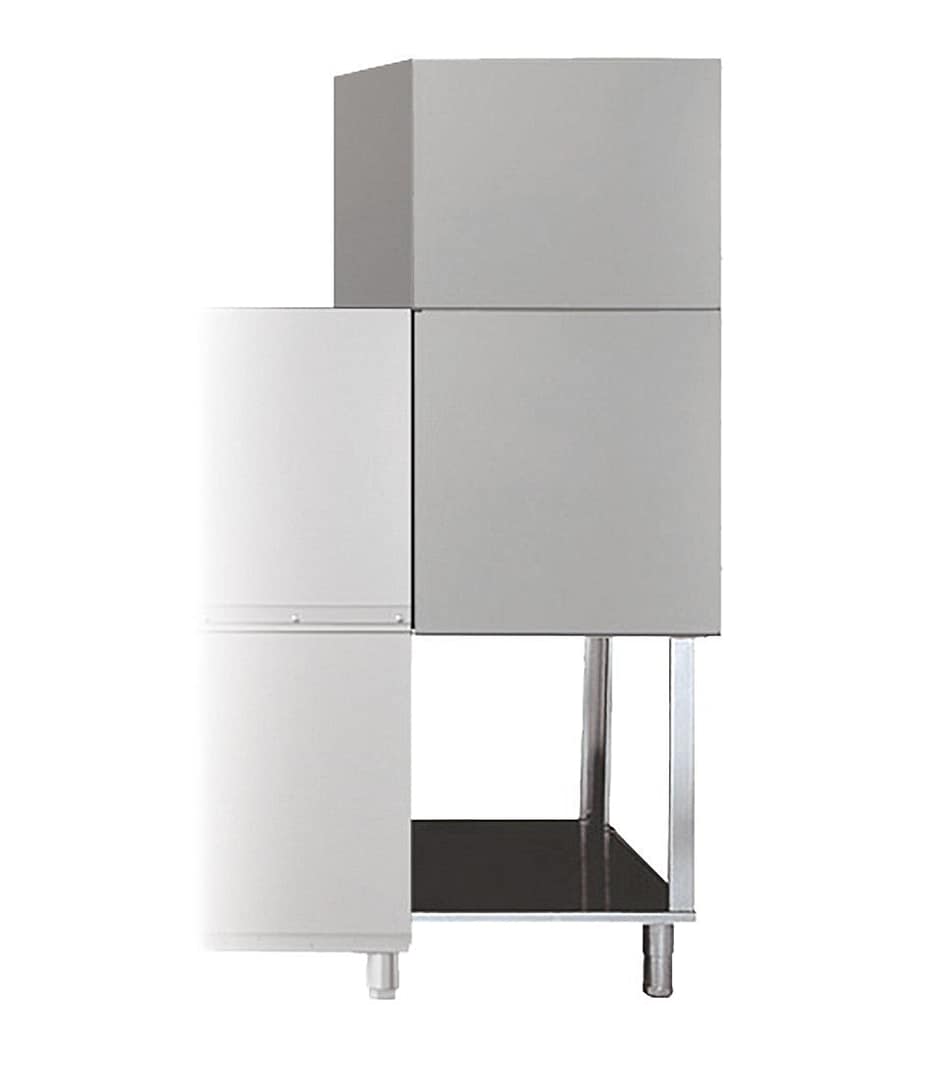

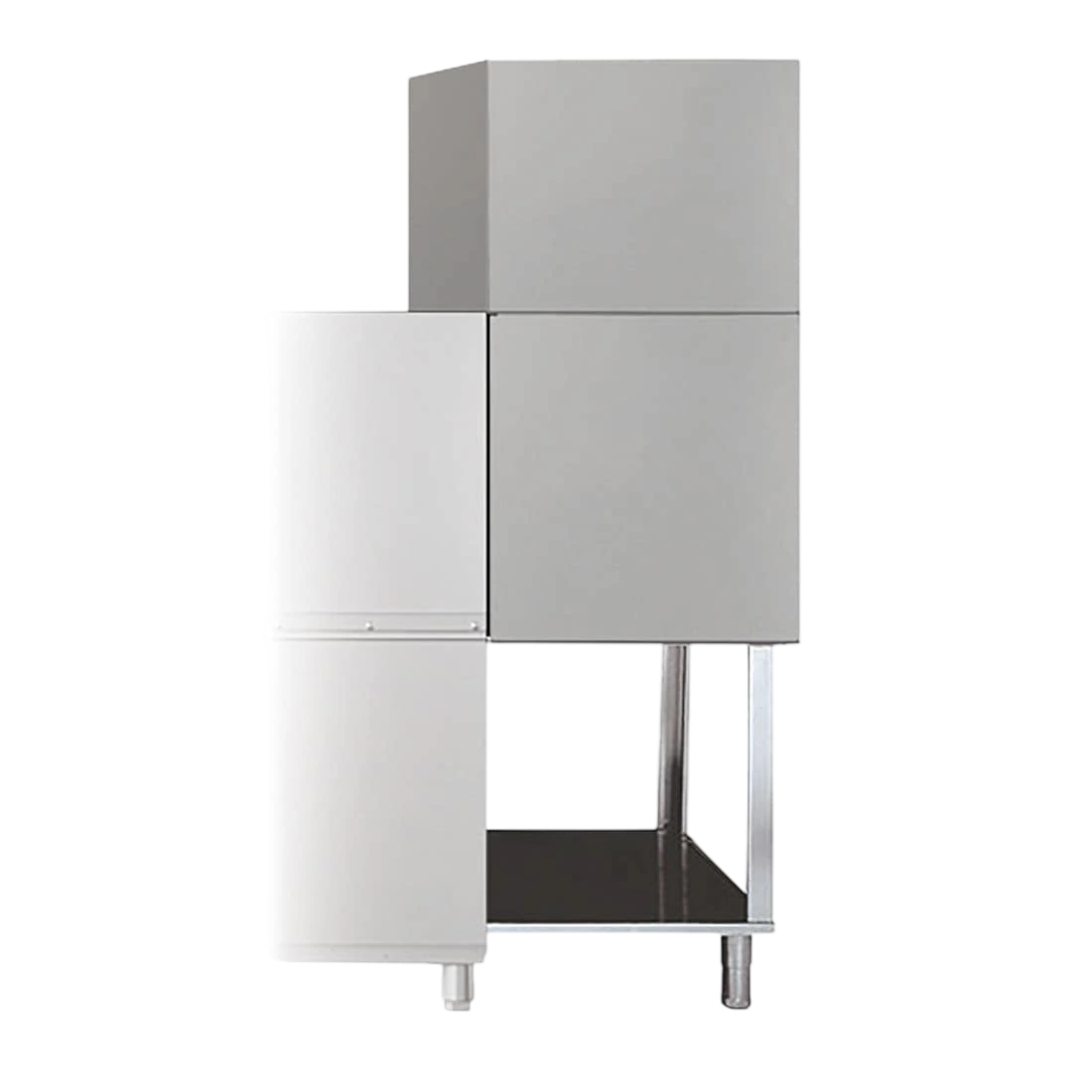

Drying Tunnel TS for Fagor Compact Conveyor Dishwasher – TS-COO

Introducing the TS-COO Drying Tunnel, specifically designed for Fagor’s compact conveyor dishwasher models CCO-180 and CCO-225. This supplementary element enhances the efficiency of your dishwashing process, ensuring dishes come out dry and ready for use. Built with high-quality AISI-304 stainless steel, it is both durable and easy to maintain.

Key Features:

• Compatibility: Designed for Rack Conveyor Dishwasher modular models CCO-180 and CCO-225.
• Efficient Drying: Equipped with a 9kW heating element box and an upper fan powered by a 0.55kW motor for thorough drying.
• Durable Construction: Made from all AISI-304 stainless steel.
• Easy Access: Features an upwards-opening double panel door for easy cleaning and maintenance.
• Safety Features: Includes a safety filter for pump suction, an emergency stop button, and an open door blocking system.
• Heat Insulation: Rinsing boiler with heat insulation for energy efficiency.
• User-Friendly: Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, and limit switches.
• Removable Components: Washing arms and rinse jets are easily removable for cleaning.
• Efficient Washing and Rinsing: Offers a high-power washing system with 4 upper and 4 lower washing branches, and double effect rinse.
• Versatile Programs: Three washing programs – deep, medium, and high capacity.
• Energy-Saving Systems: Integrated energy-saving features.
• Blockage Detection: System for detecting blockage of the conveyor carriage with an automatic reverse function.
• Watermark Approved: Ensures quality and compliance with standards.

Specifications:

• Dimensions:
  • Width: 600 mm
  • Depth: 790 mm
  • Height: 1945 mm
• Wash Temperature: 50 – 65 °C
• Rinse Temperature: 70 – 85 °C
• Included Accessories:
  • 2 base baskets
  • 2 baskets for plates
  • 1 basket for glasses
  • 1 basket for cutlery
• Power Requirements: 9kW heating element, 0.55kW fan motor
• Warranty: 2 Years Parts and Labour

Why Choose the TS-COO Drying Tunnel?

• Enhanced Efficiency: Speeds up the dishwashing process by ensuring dishes are thoroughly dried.
• Robust Design: Stainless steel construction ensures longevity and reliability.
• User-Friendly Maintenance: Easy access for cleaning and maintenance with removable components.
• Safety and Compliance: Equipped with essential safety features and Watermark approval.

Conclusion:

Enhance your dishwashing efficiency with the TS-COO Drying Tunnel, designed specifically for Fagor’s compact conveyor dishwashers. Built to last and easy to maintain, it ensures your dishes are perfectly dried and ready for immediate use.

For more information and to place your order, visit www.kwcommercial.com.au or call us at 1300 001 366. Upgrade your dishwashing process today!

Frequently Asked Questions

How do I install the Fagor TS drying tunnel on my existing conveyor dishwasher?

Installing the Fagor TS drying tunnel involves securing it to the conveyor section following the manual guidelines provided, ensuring proper alignment with the dishwasher for seamless operation.

Is the TS drying tunnel compatible with all models of Fagor conveyor dishwashers?

The TS drying tunnel is designed to fit most Fagor conveyor dishwasher models. Check your model specifications or contact support for compatibility details before installation.

What regular maintenance is required for the TS-COO drying tunnel?

Regular maintenance includes cleaning the interior surfaces to prevent buildup, checking the air filters, and ensuring the ventilation is unobstructed for optimal drying performance.
