RFE ABF2000 Auto Patty Machine – 2000 Patties/hr, 16L Capacity
Updated:

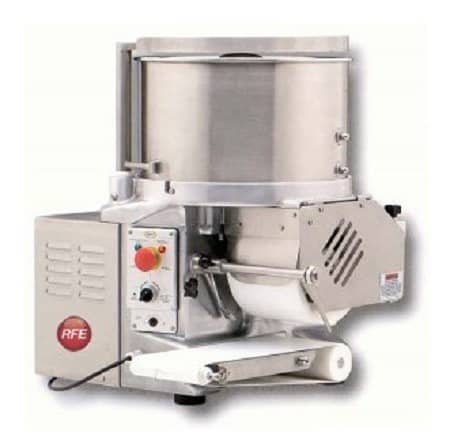

The RFE ABF2000 is a compact, industrial automatic patty maker engineered for
small-to-medium food production lines. Producing up to 2000 patties per hour, it is
ideal for butcher shops, commercial kitchens, burger manufacturers and central
production facilities seeking consistent, high-speed patty forming.
Why RFE Patty Machines?
RFE Australia is recognised for designing durable, production-ready equipment
for meat and patty processing. The ABF Series excels because it offers:
- Reliable performance under continuous operation
- Stainless-steel paddles for hygienic food-contact applications
- Tool-free cleaning to meet busy production demands
- Stable construction suitable for butcher shops and factories
Designed for Efficient Commercial Patty Production
The ABF2000 is a fixed-speed patty maker controlled via a foot pedal for hands-free
operation. Its 16-litre hopper supports continuous forming, while the 390mm conveyor
ensures a smooth workflow into trays, racks or downstream machinery.
Key Features & Specifications
- Production Output: Up to 2000 patties/hr
- Motor: 750W industrial motor
- Power: 240V / 50Hz
- Patty Diameter: 50–130mm
- Max Patty Thickness: 32mm
- Hopper Capacity: 16 litres (optional upgrades available)
- Conveyor Length: 390mm
- Construction: Heavy-duty frame with stainless-steel paddle
- Cleaning: No dismantling tools required
- Dimensions (L×W×H): 700 × 580 × 760 mm
- Weight: 66kg
Compliance & Safety (AU)
- Suitable for commercial food-processing environments
- Stable foot-pedal control for safe fixed-speed output
- Food-grade stainless-steel contact components
- Heavy-duty base ensures operational stability
Convenience & Workflow Benefits
- Uniform patties: consistent size and shape every cycle
- Continuous workflow: hopper + conveyor support uninterrupted output
- Custom shapes available: optional drums for specialty patties
- Fast sanitation: tool-free disassembly speeds up cleaning
Ideal Applications
- Butcher shops & meat processors
- Burger manufacturers
- Commercial restaurants & franchise outlets
- Central food production kitchens
- Frozen food suppliers
Watch the ABF Series in Action
Smart Energy & Sustainability
Energy Use
750W motor (fixed speed)
Typical daily runtime: 1.5–2.5 hours → 1.1–1.9 kWh/day
Running Cost Estimate
1.9 kWh × $0.30 = approx. $0.57/day
CO₂ Output (AU Grid)
1.9 × 0.79 = 1.50 kg CO₂/day
Sustainability Highlights
- Low power consumption for commercial output
- Durable stainless-steel paddle reduces long-term replacement waste
- Tool-free cleaning reduces chemical use
Eco Badges: ⚡ Low Power | ???? Hygienic Design | ???? Long-Life Build
At a glance
- 2000 patties/hr
- 16L hopper
- Stainless-steel paddle
- Fixed-speed with foot-pedal operation
